Telematics devices

The best quality GPS terminals suitable for different types of use

The WEB-SAT platform currently supports a variety of terminals by renowned manufacturers from around the world. We are open to cooperation with any devices manufacturer, as long as they have open communication protocols that guarantee full and independent operation of the terminal. Many advanced functionalities are based on professional GPS terminals. They were introduced in cooperation with Albatross System Sp. z o.o. which offers some of the best quality devices for various vehicle types, such as light fleets, trucks, special vehicles, hybrid and electric vehicles, motorcycles, etc. WEB-SAT has always aimed at providing a unique product that could be customized and adjusted to every client’s needs. That is why, apart from the white-label platform, we also offer the full range of Albatross System products. As a partner, we can offer the products on special terms as part of providing a comprehensive solution. We can adopt any business model for cooperation. Of course, it is possible to cooperate directly with the manufacturers of terminals and incorporate them into applications.

3 basic terminal versions,depending on their
equipment and capabilities:

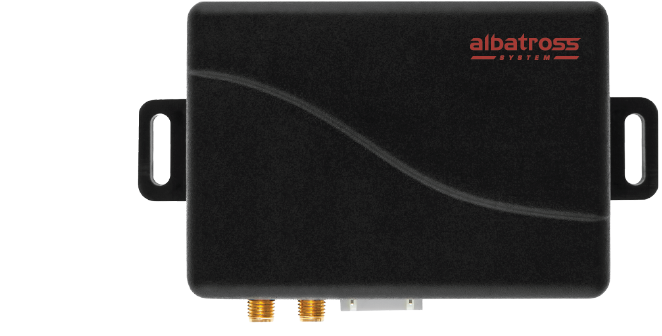

 S10.2    GPS tracker (2G/LTE)
 S10.3    GPS tracker (2G/LTE)
guaranteed CAN data reading according to the list of supported vehicles (~800 vehicles)
 S10.5    GPS tracker (2G/LTE)

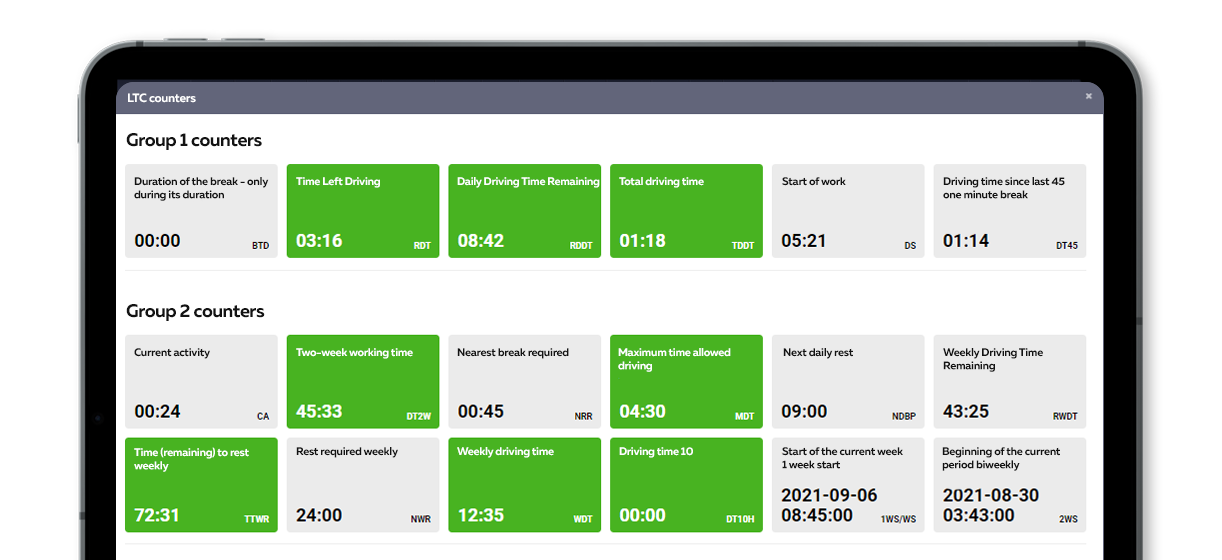

guaranteed CAN data reading according to the list of supported vehicles (~800 vehicles) + full integration with digital tachographs (DDD files, activities, drivers' names, drivers' working time - driver's remaining time counters according to Regulation 561/2006)

The main advantages of terminals

  • Modern CAN module for the automotive market:
    • ISO CAN FD support (support for the new CAN FD standard – the ability to work with new generation vehicles)
    • AEC-Q100 qualified (certificate of compliance with environmental conditions)
    • ASIL-B classification - ISO 26262 (automotive safety class certification)
    • Data reading (J1939/1708/1587/FMS/OBDII/CAN-TACHO/D8)
    • Automatic CAN synchronization - no need for the manual configuration of CAN module. Automatic configuration under the connected CAN bus
  • Dedicated additional logic processor to implement any changes according to the customer's projects (special functions, partner's logic algorithms, integration with additional modules by serial communication) - unlimited possibilities of implementing changes to meet the customer’s project requirements
  • Modem with 2G/LTE support
  • GPS, GLONASS, GALILEO, BeiDou, QZSS receiver
  • External GPS and GSM (2G/LTE) antennas to guarantee the ability to correctly output GSM/GPS signal
  • GPS and GSM Jamming detection
  • Bluetooth Low Energy data reading (iBeacon, TAG BLE, etc.)
  • Support for Continental TPMS module providing readout for:
    • Current tire pressure
    • Current tire temperature
    • Alerts on exceeding limit values
    • Status of individual tire sensors

  • 3D sensor as a black box for car accident detection and analysis
  • Detection of braking acceleration and sharp turns
  • Vehicle towing alert
  • Reading of DTC error codes using OBDII connection
  • Internal battery to maintain the terminal's operation and inform when the device is disconnected from the power supply
